Hooga Health Ember Red Light Therapy Panel for Sauna (20.1″× 12″× 2.2″)

The Hooga Health Ember Red Light Therapy Panel brings powerful red and near-infrared light therapy directly into your sauna in a compact, space-saving design.

Unlike standard red light therapy panels, the Hooga Ember is specifically designed for use inside traditional and infrared saunas. Its IP65-sealed aluminum housing, high-temperature components and internal cooling fan allow it to operate in sauna temperatures up to 194°F (90°C).

The Ember features 384 medical-grade LEDs delivering four wavelengths of red and near-infrared light: 630nm, 660nm, 810nm and 850nm. With a maximum irradiance of 175 mW/cm² and a compact 20.1" × 12" panel, the Ember delivers powerful red light therapy while taking up less space inside your sauna.

Independent red and near-infrared controls allow you to choose the wavelengths you want, while adjustable brightness, a built-in timer and optional pulse settings give you complete control over your session.

At just 20.1 inches tall, the Ember is Hooga's compact sauna red light therapy panel and is an excellent choice for personal saunas, smaller saunas and tight installations where space is limited. It can also be used as a secondary panel alongside a larger red light therapy setup for additional coverage.

Whether you're adding red light therapy to an existing sauna or designing a new wellness space, the Hooga Ember makes it easy to combine sauna heat with red and near-infrared light therapy in one convenient session.

Benefits

Hooga Health Ember Red Light Therapy Panel

• Combines sauna heat with red and near-infrared light therapy in one convenient session

• Compact design is ideal for personal saunas, smaller saunas and tight installations

• Four wavelengths — 630nm, 660nm, 810nm and 850nm — provide both red and near-infrared light

• Red wavelengths are commonly used in routines focused on skin appearance and overall skin wellness

• Near-infrared wavelengths penetrate deeper and are commonly incorporated into muscle, joint and recovery routines

• Great addition to a post-workout or recovery routine

• Allows you to incorporate red light therapy without requiring a separate session outside of your sauna

• Designed to remain inside your sauna so your red light therapy panel is ready whenever you are

• Can be used as a primary panel in a smaller sauna or as a secondary panel for additional coverage

• Suitable for both traditional and infrared saunas

Core Features

Hooga Health Ember Red Light Therapy Panel

• Purpose-built sauna red light therapy panel

• Compact design for personal and smaller saunas

• Rated for sauna temperatures up to 194°F / 90°C

• IP65-sealed construction for protection against dust and moisture

• Durable aluminum housing

• IP65-rated internal driver

• 384 medical-grade LEDs with 4-in-1 lenses

• Four wavelengths: 630nm, 660nm, 810nm and 850nm

• Red and near-infrared wavelengths

• Maximum irradiance of 175 mW/cm²

• Irradiance of 111 mW/cm² at 6 inches

• Independent red and near-infrared controls

• Adjustable brightness from 0–100%

• Built-in 1–20 minute timer

• Optional 10Hz and 40Hz NIR pulse modes

• Internal cooling fan

• Automatic thermal shutdown and restart protection

• Low EMF — 0.0 µT at 4 inches

• Flicker-free operation

• 60-degree beam angle

• 100,000+ hour LED lifespan

• FCC, CE and RoHS certified

• 3-year manufacturer warranty

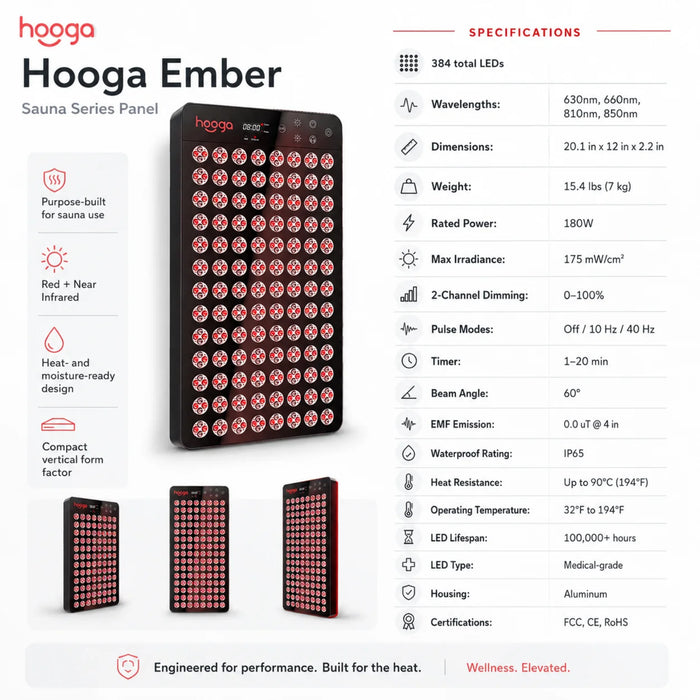

Tech Specs

Hooga Health Ember Red Light Therapy Panel

• Total LEDs: 384 medical-grade LEDs

• LED Type: 4-in-1 lens

• Wavelengths: 630nm & 660nm Red / 810nm & 850nm Near-Infrared

• Maximum Irradiance: 175 mW/cm²

• Irradiance at 6": 111 mW/cm²

• Irradiance at 12": 90 mW/cm²

• Irradiance at 18": 76 mW/cm²

• Irradiance at 24": 59 mW/cm²

• Rated Power: 180W

• Dimensions: 20.1" × 12" × 2.2"

• Weight: 15.4 lbs / 7 kg

• Housing: Aluminum

• IP Rating: IP65

• Internal Driver: IP65 rated

• Operating Temperature: 32–194°F / up to 90°C

• Cooling Fans: 1

• Thermal Protection: Automatic shutdown above 90°C and restart below 60°C

• Power Input: AC 100–240V

• Brightness: 0–100% in 5% increments

• Timer: 1–20 minutes

• Pulse Modes: Off / 10Hz / 40Hz

• Beam Angle: 60 degrees

• EMF Emission: 0.0 µT at 4 inches

• Flicker: None

• LED Lifespan: 100,000+ hours

• Certifications: FCC, CE & RoHS

• Warranty: 3 Years

Included

Hooga Health Ember Red Light Therapy Panel

• 1 Hooga Ember Red Light Therapy Panel

• 1 Pair of Protective Eye Goggles

• 1 Hanging Cable

• 1 Hanging Pulley

• 2 Power Cables

• Mounting Hardware

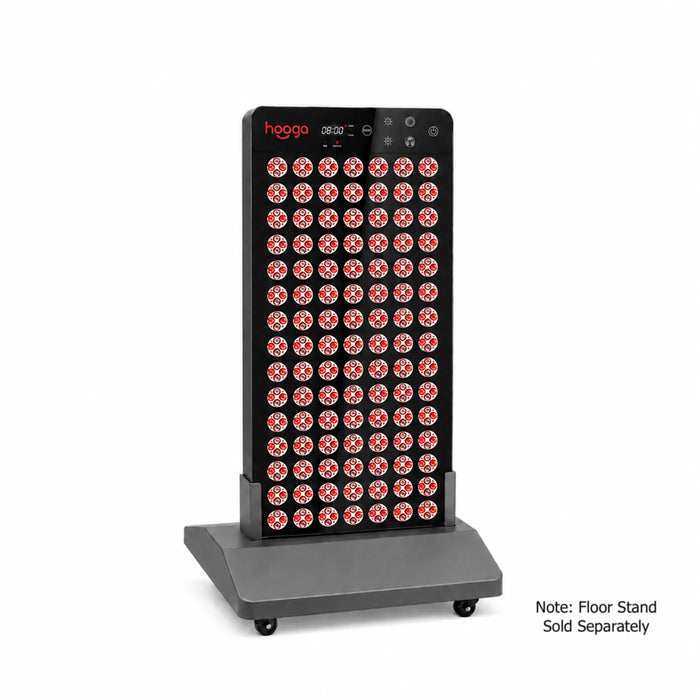

Optional Sauna Series Floor Stand sold separately.

Treatment Guidelines

Hooga Health Ember Red Light Therapy Panel

• Distance: Position yourself approximately 6–18 inches from the panel, depending on your session and desired light intensity.

• Wavelengths: Use red light, near-infrared light, or both together using the independent wavelength controls.

• Brightness: Adjust the red and near-infrared channels from 0–100% to suit your session.

• Timer: Set your session from 1–20 minutes using the built-in timer.

• Pulse Mode: Near-infrared light can be used continuously or with the optional 10Hz or 40Hz pulse settings.

• Sauna Use: The Ember is designed for use in both traditional and infrared saunas at temperatures up to 194°F (90°C).

• Hydration: Stay properly hydrated before, during and after sauna sessions.

• Handling: Do not touch the metal housing while it is hot. Allow the panel to cool before handling or removing it from its mount.

• Always follow the Hooga Sauna Series user manual for complete installation, treatment and safety recommendations.
